TIC-A 系列风冷式冷水机采用单级蒸汽压缩回路，并具有压缩机过载?；?、泵浦过载?；ぁ⒛嫦嗳毕嗑?、防止结水?；?、高
低压力?；さ茸爸?，机器性能稳定，寿命长。 可快速降温， 温控稳定，满足客户要求。 此系列产品主要应用冷热交换的原理
进行工作。适用于现代工业中的冷却领域，且不受环境温度的影响，是不可或缺的配置设备。
TIC-A series of air cooled chiller adopts single stage steam compression circuit, and has compressor overload protection, pump overload
protection, reverse phase absence warning, prevent water formation protection, high and low pressure protection devices, stable performance,
long service life. Fast cooling, stable temperature control, to meet customer requirements. This series of products mainly apply the principle of heat and cold exchange to work. Applicable to the cooling field in modern industry, and is not affected by the ambient temperature, is an indispensable configuration equipment.
冷却温度范围 5C- 35C;
不锈钢保温水箱，防结冰保护装置 ;
制冷剂采用 R22，制冷效果好 ;
冷冻回路采用高、低压开关控制 ;
压缩机及泵浦均有过载保护 ;
采用邦普电脑温控器精度达 ±0.1C;
操作方便，结构简单，易于维修 ;
低压泵浦为标准配备，另可选用中压或高压泵浦 ;
可选增加配置水箱液位计 ;
采用谷轮压缩机 ;
TIC-A 风冷式采用套片式冷凝器，传热效果佳，散热快，无需提供冷却水 ;
改为欧规安全回路型时，机型后加注“CE”
Cooling temperature range 5C-35C;
Stainless steel insulated water tank, anti-icing protection device;
R22 refrigerant, good refrigeration effect;
The cryogenic circuit is controlled by high and low pressure switches.
Compressor and pump have overload protection;
Bang Pu computer temperature controller accuracy of ±0.1C;
Easy to operate, simple structure, easy to maintain;
Low pressure pump is standard, medium pressure or high pressure pump can be selected;
Optional addition of tank level gauge;
Adopt grain rotary compressor;
TIC-A air-cooled using sleeve condenser, heat transfer effect is good, fast heat dissipation, no need to provide cooling water;
When changing to EC safety loop type, add "CE" after the model

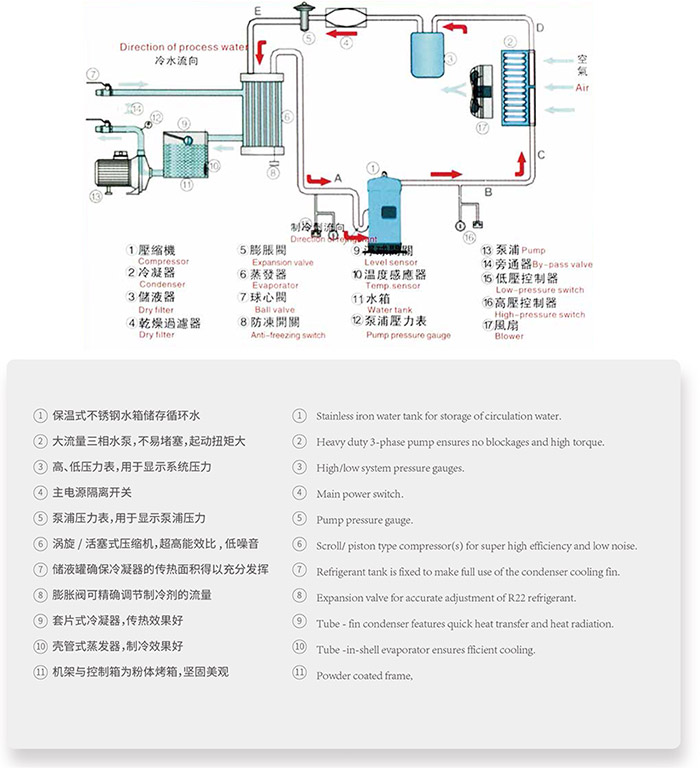

TIC-A 系列冰水机主要由压缩机、冷凝机、热力膨胀阀盒蒸发器四大部件组成，采用单级蒸气压缩制冷系统，利用制冷剂的气液相互转换，吸收盒释放热量的原理，达到制冷的效果。
TIC- A 系列开机后，压缩机 (1) 开始工作，制冷剂在压缩机的压缩作用下变成高压高温气体，往 A-B 的方向循环 ; 在 B-C-D过程，高压高温的制冷剂气体通过冷凝器 (2)，与空气发生热交换，由气态转变为液态，同时被空气带走热量 ; D-E 过程，液态的高压制冷剂通过热力膨胀阀 (5)，压力下降，部分制冷剂由液态转变为气态，此时制冷剂为液态和气态两相混合的状态 ;
E- A 过程中，制冷剂通过蒸发器 (6)，在蒸发器内与传热媒介发生热交换，冷却冷冻水到所需的温度，满足设定要求 ; 经蒸发器后的气体制冷剂循环回到压缩机，完成一次制冷循环。
TIC- A air- cooled water chillers include four main components, such as compressor, condenser, thermostatic expansion valve and evaporator.
The system adopts a single closed loop design for refrigeration system. Refrigerant is alternatively changed from gaseous to liquid state to absorb or release heat thus a cooling effect is achieved. When the machine is started, compressor starts working. Refrigerant is compressed into high pressure and high temperature gas in the process from A to B. In the process From B to C and D, this high pressure and high temperature gas is cooled when it is passing through the condenser and changed into liguid. Heat is taken away by the cooling air. In the process from D to E, the pressure of liquid refrigerant is reduced by expansion valve and a part of the refrigerant is changed from liquid to gaseous state. In the process from E to A, refrigerant absorbs the heat of process water in the evaporator and returns back to the compressor. This heat exchange process repeats until process water is cooled down to required temperature.

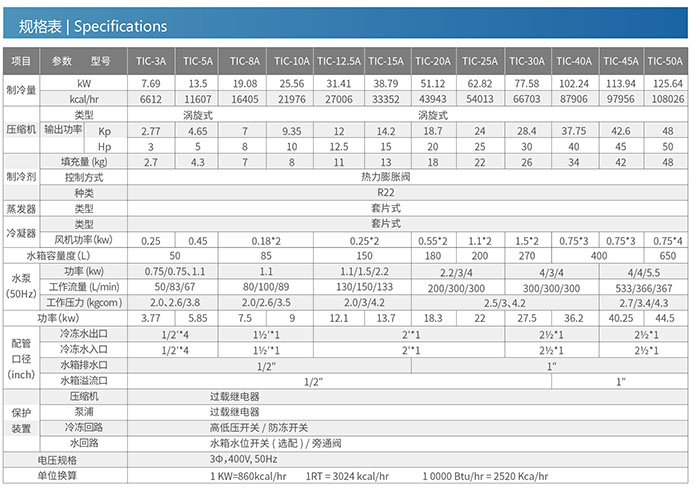

注：
1) 制冷能力是依据出水口温度 12C，环境温度 30°C 下测得 ;
2) 在 3φ，230V 时，压缩机类型为活塞式 (TIC-3A~TIC-5A);
3) 制冷剂可选择 R407C 环保型冷媒 ( 用 U 表示，例如 : TIC-5A-U);
4) 此泵浦为内销及外销东南亚标配，客户可依需求换装中压泵浦，例如 : TIC-5A-P)，
也可换装高压泵浦 ( 用 HP 表示，例如 : TIC-5A-HP)，具体参数依次如上所示 ;
5) 该风冷式冷水机适用于环境温度 35℃以下的使用条件 ;
6) 机器电压可按客户要求特殊订购。
Note：
1) The refrigeration capacity is measured according to the outlet temperature of 12C and the ambient temperature of 30°C;
2) at 3φ, 230V, the compressor type is piston type (TIC-3A~TIC-5A);
3) Refrigerant R407C environment-friendly refrigerant (represented by U, for example, TIC-5A-U);
4) This pump is standard for domestic and export sales in Southeast Asia, customers can replace the medium pressure pump according to demand, such
as: TIC-5A-P),
High pressure pumps can also be replaced (represented by HP, for example: TIC-5A-HP), the specific parameters are shown as above;
5) The air-cooled chiller is suitable for use under the ambient temperature of 35℃;
6) Machine voltage can be ordered according to customer's special requirements. |
|
