TDL 系列热风干燥组合将塑料之干燥及输送功能结为一体，特别适用于厂房高度受到限制之大型射出成型机及立式射出成
型机，TDL 系列干燥送料组合，提供一组用来输送干燥原料的电眼料斗为标准配备。此外亦可适配 TAL-900G 来达成二段送
料的应用。

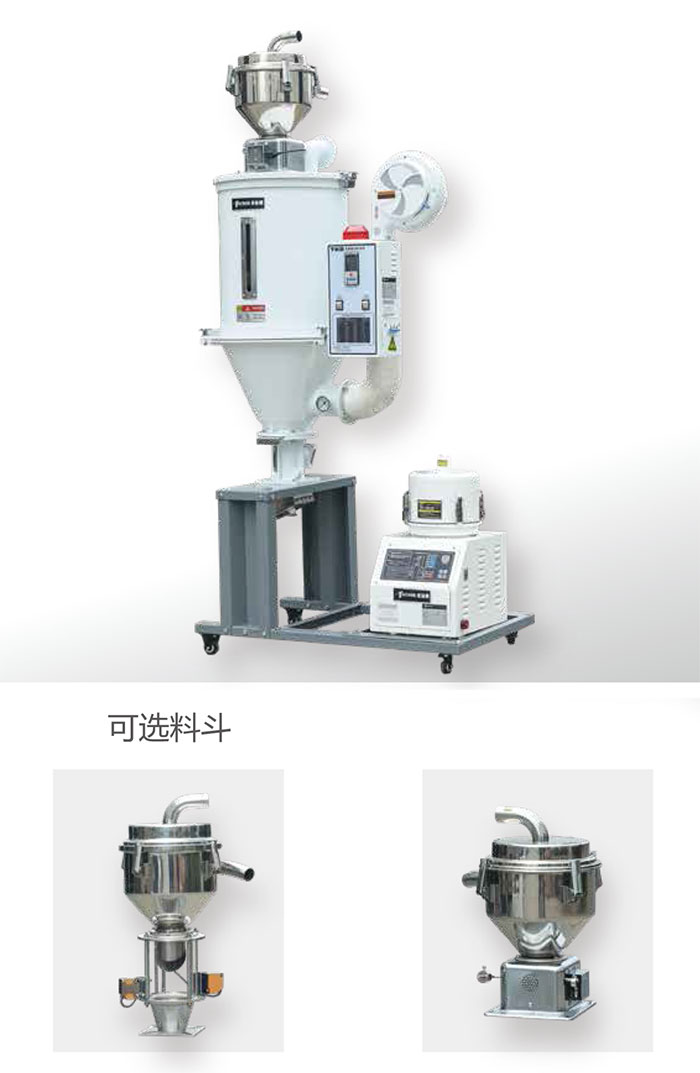

The TDL series of drying loaders integrate plastic drying and loading injectionmoulding machine which are placed in height limited
workshop. This combinatioroffers a group of standard micro-switch hoppers which can be used to load dryedmaterials. Which can be
used to load dryed materials. Besides, TAL-900G isavailable for choose to realize the two-stage loading function.
采用比例式偏差指示温控器，可精确控制温度 ;
弹性的机型搭配，方便用户端选用 ;
占地小，移动方便，可任意更换机台使用 ;
料桶采用不锈钢制作，确保原料不被污染 ;
料桶与料斗分离，方便清理 ;
密闭回路送料系统，避免干燥后的原料因接触外界空气而受潮 ;
料斗可选做抛光处理，确保原料不受污染 ;
配备警示灯可立即反应故障问题 ;
单管吸料盒与标准配备 ;
TDL-300 及以下机型配备铝制标准底座，TDL-400 及以上机型配件铝制磁力底座
TDL 型集干燥、单段送料于一体，可选配 24 小时定时器 ;
可选配热风回收装置，节约能源，无热气粉尘排出，保护环境 ;
可搭配 TAL-900G 达成二段送料 ;
有热风回收器、风车入口过滤器、空气滤清器、旋风集尘器、铝制磁力底座，料斗磁铁可供选配。
Adopting a proportional deviation indicating temperature controller, it can accurately control the temperature;
Elastic model combination, convenient for users to choose from;
Small footprint, convenient mobility, and the ability to easily replace machines for use;
The material barrel is made of stainless steel to ensure that the raw materials are not contaminated;
Separate the bucket from the hopper for easy cleaning;
Closed loop feeding system to prevent dried raw materials from getting damp due to contact with external air;
The hopper can be polished to ensure that the raw materials are not contaminated;
Equipped with warning lights, it can immediately reflect the fault problem;
Single tube suction box and standard equipment;
TDL-300 and below models are equipped with aluminum standard bases, and TDL-400 and above models are equipped with aluminum magnetic bases as accessories
The TDL model integrates drying and single stage feeding, and can be equipped with a 24-hour timer;
Optional hot air recovery device, saving energy, no hot air dust discharge, protecting the environment;
Can be paired with TAL-900G to achieve two-stage feeding;
There is a hot air collector, windmill inlet filter, air filter, cyclone dust collector, aluminum magnetic base, and hopper magnet available for selection.
|
|
